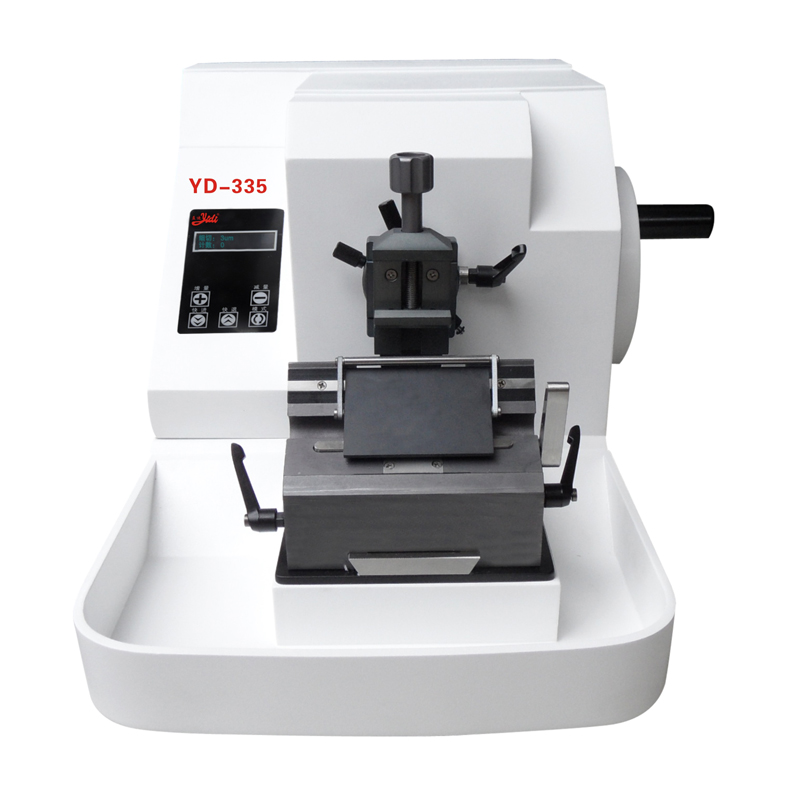

YD-335

PRODUCT PARAMETERS:

YD-335 Tissue Slicer This machine brings together the essence of our technology, adopts the international advanced design concept, more in line with ergonomic design, and the parts are mainly imported: stepper motor feeding system; high precision cross ball guide; circulating ball screw and other precision parts make the slicing precision higher. The slicer is a model of current advanced technology, a perfect combination of electronics and machinery, and another new development direction of tissue slicing science.


Functional features:

★Adopting international advanced imported stepper motor drive, high slicing precision, smooth and quiet operation.

LCD Chinese and English menus control slice thickness, trim thickness, slice count and fast forward, fast backward and conversion functions.

★ Unique sample retraction function avoids damage caused by reverse rubbing of specimen tissue and slicing knife, makes high quality slicing more smooth and prolongs the service life of the blade. At the same time, the knife holder has a lateral movement function, which effectively and fully utilizes the full length of the blade.

★The hand wheel can be locked at any position, making slicing work more safe and convenient.

Easy disassembly of the waste chip chute makes the slicing work clean and hygienic. With safe alarm system

E-type knife holder with hand guard covering the full length of the blade to ensure safety Effective protection for users during slicing and wax block replacement.

Electric rough trimming speed 300um/s and 900μm/s

★The trimming and slicing are all stepper motors with automatic stop function after motor feeding.

★The knife frame is processed with special technology, no staining and no rolling of slices when slicing.

★Specimen adjustment direction: horizontal 8°, vertical 8° sample clip can be fixed with 360° arbitrary rotation, which is convenient for different slicing requirements.


Main technical parameters:

Positioning system: with 0 bit indication sample maximum horizontal shift: 20/28mm can be customized

Slicing thickness setting range:

0.5-100μm adjustable sample maximum vertical shift: 60/70mm customizable

0.5-1μm in 0.5μm increments; automatic sample feed, automatic retraction: 12μm

1-10μm in 1μm increments; minimum indexing for slice adjustment: 0.5μm

10-20μm in 2μm increments; minimum index value for trim adjustment: 1μm

20-50μm in 5μm increments, slice accuracy: ±5%

50-100μm in 10μm increments Maximum slice cross section: 50×70mm

Trimming thickness range:

1-600μm adjustable with complete set of collets and tool holders

1-10μm, in 1um increments; input power: AC220V/110V

10-20μm, in 2um increments; frequency 50/60HZ

20-100μm, in 10um increments; weight of the whole machine; 35kg

100-600μm, in 50um increments; machine size: 520×450×300 (mm)
