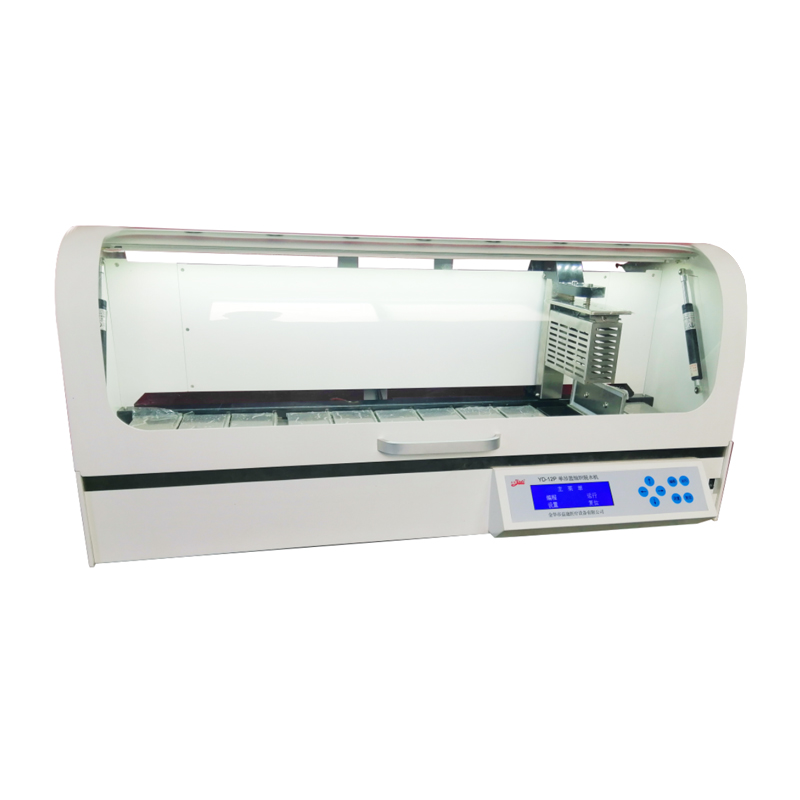

YD-12P

PRODUCT PARAMETERS:

1. Full intelligent optimized circuit design, the upper microcomputer and the lower microcomputer use 485 communication mode, stable and reliable. Can automatically determine the operation of the power outage retired cylinder protection

2. Adopt digital screen + keys, Chinese menu, simple operation and detailed display information.

3. International standard synchronous belt drive and linear bearing positioning design: moisture-proof, temperature-resistant, anti-corrosion, accurate positioning

★4. The machine liquid cylinder with a lifting cylinder handle, convenient to change the liquid, and cylinder cover for the resistance of slow shut, no noise. Really reduce the noise when changing the basket (the first of this model).

5. Using metal frame curved door, combined with transparent organic glass, clear and bright vision. Equipped with 0.8m long LED high-brightness lighting and automatic control switch.

6. Pharmaceutical liquid cylinder: a time can complete the dehydration of ≧ 60 tissue treatment.

7. After the power failure, with action memory and program memory function, the machine in operation power failure or power failure, can continue to run according to the original program.

8. External exhaust type environmental protection function: harmful gases through the exhaust duct directly outside; using the top exhaust system, combined with the ventilation cabinet, the maximum effective purification of air, and the fan automatically, timing delay control.

9. Automatic operation can be inserted into the manual basket at any time, easy to observe the dehydration or instantly add tissue. And there is a Chinese operation prompt.

Main technical parameters:

Number of liquid cylinders: 12 (the last three cylinders are paraffin cylinders)

Single cylinder volume: 1000 ML

Single-cylinder processing time: single-cylinder processing time: single-cylinder in 0 ~ 99 hours arbitrarily set

★Can set the dehydration program: 18 sets

Temperature presetting range: 0～80℃ low-pressure non-contact temperature control: using integrated circuit low-pressure temperature control technology, low energy consumption, environmental protection and more safety, effectively extending the life of the equipment.

★ Power failure protection 220V power failure, in the liquid cylinder battery power supply can run for 2 hours, after the completion of the xylene dip, and then retired cylinder protection. Protection cylinder 1-7 cylinders adjustable.

The number of times to change the cylinder leaching shaking: 0-6 times arbitrarily adjustable, leaching 10-60 seconds adjustable

Stirring speed: 3 times/min when grid power supply, 1 time/min when internal battery power supply.

Any time delay within one year

Supply voltage: AC220V±22V 50 Hz±1Hz Operating current: 2.3A/Max

Relative humidity of the working room: 80% max

Dimension: 1051×415×502mm
