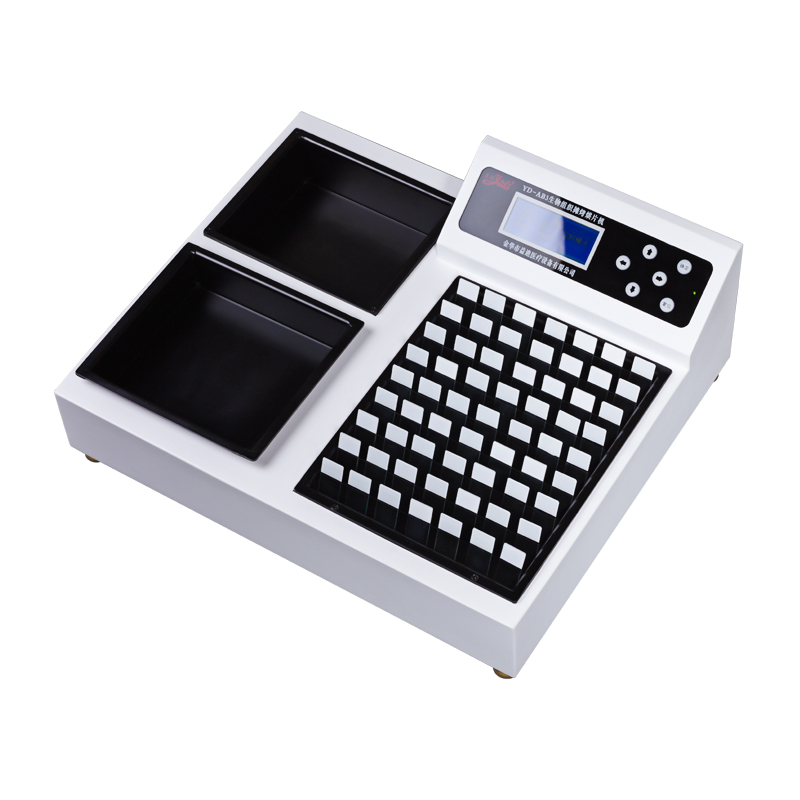

YD-AB3

PRODUCT PARAMETERS:

The machine adopts American ATMEL microprocessor control technology and imported heating silica gel heating material, stable performance and high precision control. Chinese (English) menu touch control panel, LCD display, dynamic display function is complete, touch button operation: there is a memory function, can be set on and off automatic power on and off time, can set the date and time of the display and temperature and other functions.

It can meet the different needs of users to the greatest extent. The louvered baking box, with black Teflon coating surface treatment, easy to operate and anti-scratch; with secondary safety protection, original heating components; with efficient heat transfer system, with overheating protection. The whole machine is novel in shape, compact in structure, easy in operation, stable in performance, small in size and light in weight, which is at the leading level in China.

Main technical parameters:

Slicing water temperature: room temperature ~ 99 ℃ adjustable, automatic constant temperature

Baking temperature: room temperature ~ 99 ℃ adjustable, automatic constant temperature

Baking temperature: room temperature ~ 99 ℃ adjustable, automatic constant temperature

Temperature control accuracy: ±1℃

With memory function, automatically retain the set temperature after running

Power supply voltage: AC220V±10％50HZ

Power: ≤ 900VA

Ambient temperature: 0 ~ 40 ℃

★Baking and baking time timing and alarm function.

Reach the set preset temperature time: ≦15 minutes

★With draining partition strip, convenient to fish up slices after the rapid drainage of water to prevent slippery slices

★Each slot is equipped with silicone heating sheet to ensure uniform temperature and fast heating speed when baking slices.

Slant insert baking tray can put ≥ 60 slides

Reach the set preset temperature time: ≦15 minutes

★The baking pan can put four 30 places manual staining rack

Dimension: 480*580*110mm

Slice size：215x215x55mm

Baking size: 235x195x75mm
