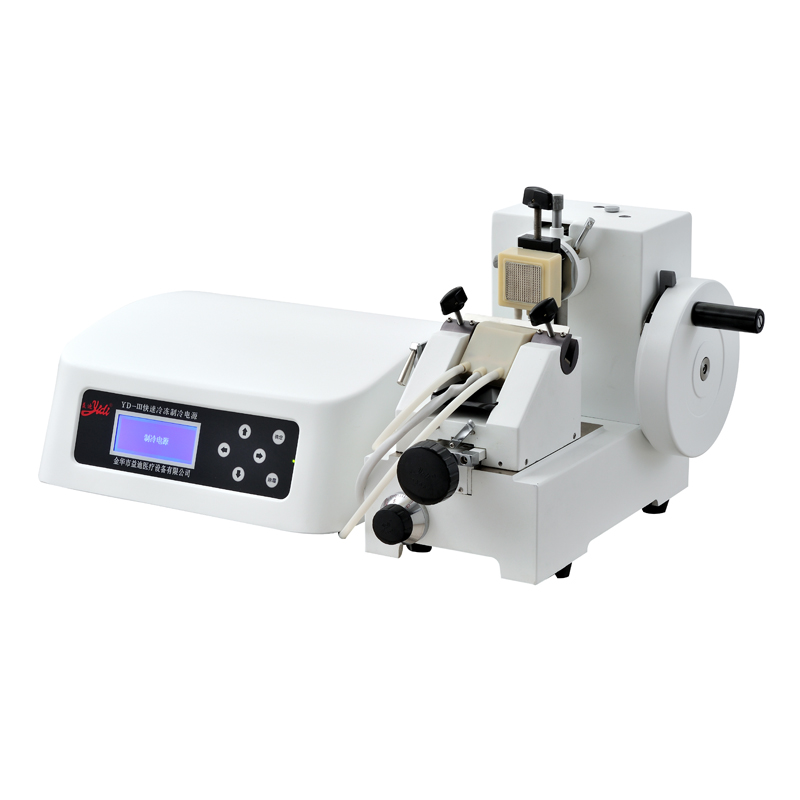

It is the improvement and perfection on the basis of YD-1508A (B).
Adopted the international advanced technology - precision roller cross guide.
The material is made of high strength alloy steel, and the metal material has unique design and precision structure.
In addition to ordinary soft tissue sectioning, it is especially suitable for hard tissue sectioning, such as plastic, fiber, bone, plant, hair strands, etc.
It is an ideal slicer for research institutions, laboratories and clinical pathology.
The machine is capable of fast freezing for frozen sectioning and conventional paraffin sectioning at the same time
Can be equipped with wide and narrow knife frame
Main technical parameters:
Slicing thickness range: 1-30μm 1-35μm adjustable
Slicer adjustment minimum index value: 1μm
Slicing accuracy: ±5％
Maximum slicing section: 60×40mm
Maximum area of freezing table: 40×32mm
The maximum temperature difference of freezing table≥60℃
Maximum temperature difference of freezing ≥50℃
Cold knife and knife back into 45 ℃ angle slicing, easy to smear slices
With memory function, automatically retaining the set temperature after operation
Automatic constant temperature defrosting temperature display, automatically restore the cooling working state after defrosting cooling speed 2-7 minutes to reach the slicing temperature.
