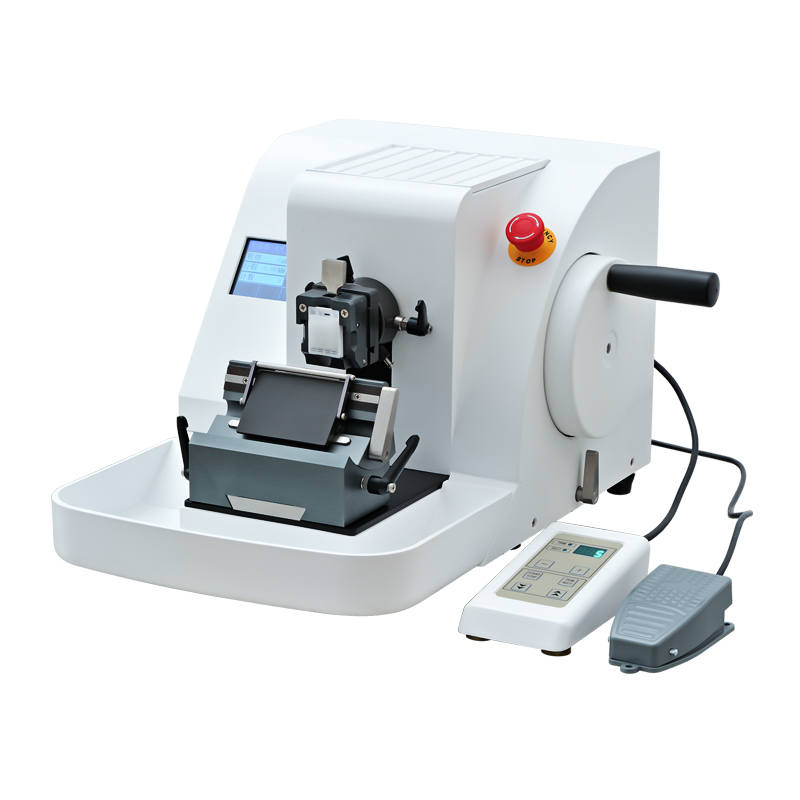

YD-355AT

PRODUCT PARAMETERS:

The YD-355AT automatic tissue slicer has novel structure, advanced function and excellent performance, and the drive feed is precisely controlled by computer program, which can quickly switch between manual or electric slicing. Especially, the electric slicing which can control the speed at will, the running action is driven by the precision servo motor to achieve an unusually smooth and fluent slicing effect, so that some hard tissues or some difficult specimens can be easily completed, and at the same time the operator can free his hands for slicing, simplifying the technical difficulty of slicing work, greatly reducing the operator's labor intensity, and significantly improving the work efficiency and economy.

Technical parameters:

☆ 1. The host has a built-in touch main menu control display panel and an external manual control box, which is unique, convenient, and easy to operate.
☆ 2. Quickly switchable manual and foot operated automatic switch control and fully automatic slicing modes (three slicing modes).
☆ 3. In automatic mode, it has stepless speed regulation to meet different slicing requirements and emergency stop function.
4. Any conversion between slicing mode and trimming mode.
☆ 5. Travel limit alarm, drive overload protection, and automatic sleep protection.
A precise positioning system with 6.0 bit indication.
7. Slice thickness adjustment range:

0.5~100 µ m:The thickness values of 0.5-2 µ m increase in increments of 0.5 µ m (0.5, 1, 1.5, 2); The thickness values of 2-10 µ m increase by 1 µ m (2, 3, 4,... 10);

The thickness value of 10-20 µ m increases by 2 µ m (10, 12, 14... 20); The thickness values of 20-100 µ m increase by 5 µ m (20, 25, 30.100).
8. The thickness adjustment range for film repair is 1~600/999 µ m (customizable).
9. The maximum horizontal stroke of the sample is 20/28 ± 1mm (customizable), and the maximum vertical stroke of the sample is 60/70 ± 1mm (customizable).
10. Slicing accuracy: ± 1%.
11. With a fast forward and backward speed of 1 mm/s, the sample is automatically fed and retracted.
12. Precise positioning of the sample head. Horizontal 8 ° and vertical 8 °
☆ 13. The sample clip can be rotated and fixed at any angle of 360 °, making it convenient for different slicing requirements.
☆14. Various sample chucks can be quickly exchanged by hand within 5 seconds.
15. Convenient dismantling of pallets and environmentally friendly waste bins.
16. Input power supply AC220V/50Hz, 110V/60Hz.
17. Volume (length) 500 × (Width) 320 × (Height) 500mm, net weight 33kg.
