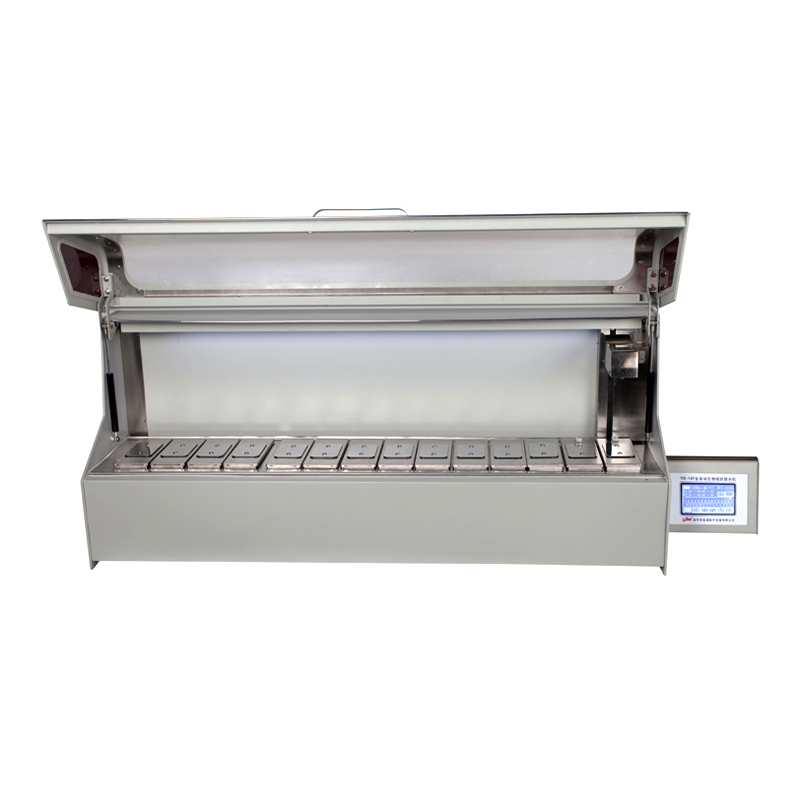

YD-14P2

PRODUCT PARAMETERS:

1. Full intelligent optimized circuit design, the upper microcomputer and the lower microcomputer use 485 communication mode, stable and reliable. Can automatically determine the operation of the power outage retired cylinder protection

2. Adopt digital screen + keys, Chinese menu, simple operation and detailed display information.

3. International standard synchronous belt drive and linear bearing positioning design: moisture-proof, temperature-resistant, anti-corrosion, accurate positioning

*4. The machine liquid cylinder with a lifting cylinder handle, convenient to change the liquid, and cylinder cover for resistance slow shut, no noise. Really reduce the noise when changing the basket (the first of its kind in this model).

5. Using metal frame curved door, combined with transparent organic glass, clear and bright vision. Equipped with 0.8 meters long LED high brightness lighting, automatic control switch.

6. Liquid tank of pharmaceuticals: it can complete the dehydration treatment of >120 tissues at one time.

7. After power failure, with action memory and program memory function, the machine can continue to run according to the original program when the power is stopped or cut off during operation.

8. External exhaust type environmental protection function: harmful gas is directly discharged outside through exhaust duct; using top exhaust system, combined with fume hood, the maximum effective purification of air, and the fan is automatic, timed delay control.

9. Automatic operation can be inserted into the manual basket at any time, easy to observe the dehydration or instantly add tissue. And there is a Chinese operation prompt.


Main technical parameters:

1. Number of liquid cylinders: 14 (the last four cylinders are paraffin cylinders)

2. Single-cylinder volume: 2000 ML, double-cylinder 4000 ML

3. Single-cylinder processing time:

The first cylinder can be set at any time from 0 to 80 hours

The 2-14 cylinders can be set within 0~24 hours

4. Temperature preset range: 0~99℃

5. Change cylinder stay filtrate time: 0~30S

6. Stirring speed: 0~6 times/min

7. Settable dewatering program: 18 sets

8. Power supply voltage: AC220V±22V 50 Hz±1Hz

9. Working current: 2.3A/Max

10. Studio relative humidity: 80% max

11. Outline size: 1300×420×550
