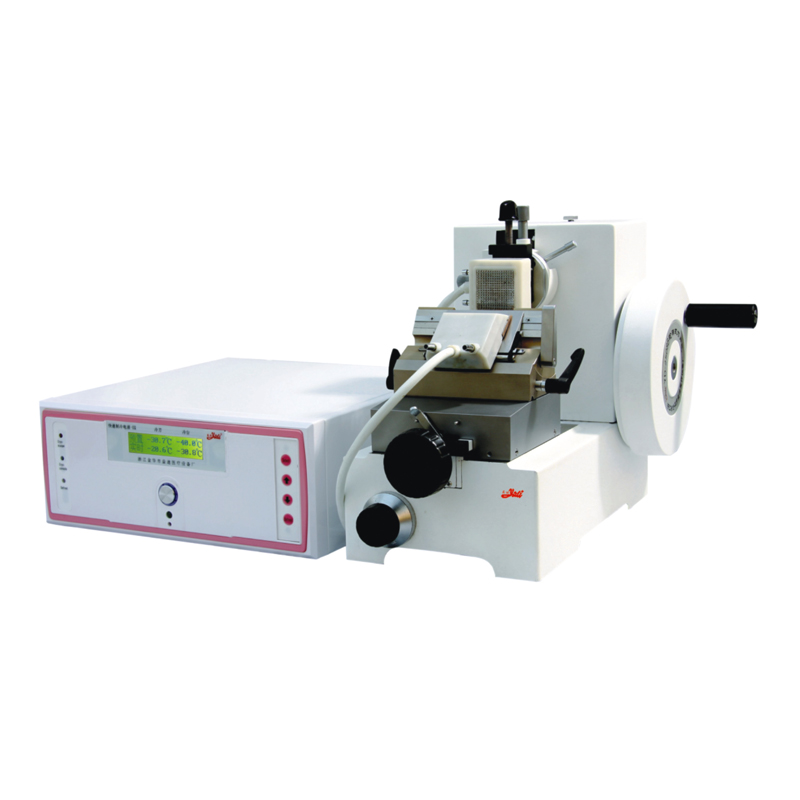

YD-2508III

PRODUCT PARAMETERS:

This type of rapid thermostatic frozen slicer is an improved version of the original YD-1508 series based on the demand of our customers at home and abroad. The machine can use disposable blade directly without using disposable blade holder, which is convenient and simple. The machine adopts the international advanced technology-precision ball cross guide vice, and the use of nano-materials. It has automatic alarm system, automatic frost and other functions, fast freezing, stable performance and reliable temperature adjustment, which greatly improves the effect of tissue slicing. The machine can do fast freezing section, also can do conventional paraffin embedded section, economic and practical.

Main technical parameters:

Slicing range: 1-25μm 1-30μm adjustable

Minimum index value of slice adjustment: 1μm

Maximum paraffin sectioning area: 60×40mm

Maximum area of freezing table: 45×35mm

Slicing accuracy: ±5％

Maximum temperature difference of freezing table: ≥60℃

Maximum temperature difference of cold knife: ≥50℃

With power-saving rapid cooling and automatic recovery memory function.

Cold knife, cold table Chinese blue screen with the same screen display preset temperature, real-time temperature

Cold knife and the back of the knife into 45 ° angle, the smaller the angle is easier to dip the film

Defrosting temperature display, automatic recovery of the working state of cooling after defrosting

With memory and automatic recovery function, automatically retain the preset temperature after operation

The working temperature of slicing can be reached within 2-7 minutes after cooling time
