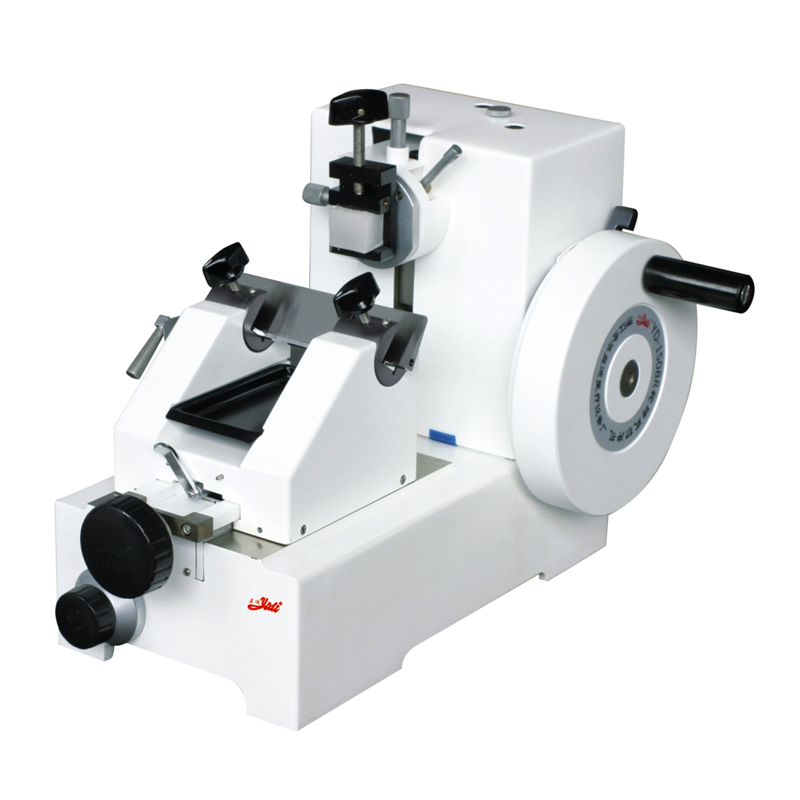

YD-1508R

PRODUCT PARAMETERS:

It is the improvement and perfection on the basis of YD-1508A (B).

It adopts the international advanced technology - precision roller cross guide.

The material is made of high-strength alloy steel and other precious metal materials, with unique design and precision structure.

In addition to ordinary soft tissue sectioning, it is especially suitable for hard tissue sectioning, such as plastic, fiber, bone, plant, hair strands, etc.

The sample holder can be locked arbitrarily on the three-dimensional axis, which is easy to adjust the slicing angle.

The knife holder moves forward and backward, and the operation will automatically feed the knife. The knife holder can be moved longitudinally and laterally without the need to touch the slicing knife surface with fingers.

Whether using standard slicing knives or disposable blades, ideal blade results can be obtained.

☆ The right hand wheel can be locked in any position with one hand, which is safe and convenient.

The whole machine is sealed without disassembly, making the slicing work clean and convenient.

It can freeze slices quickly and perform conventional paraffin slices at the same time.

Unique titanium plated guide ensures high precision slicing. Precise slicing. The sample holder can be fine-tuned at will.


Main technical parameters:

Slicing thickness range: 1-30μm,

Slicer adjustment minimum index value: 1μm

Slicing accuracy: ±5%

Maximum slicing section: 60×40mm

The right slicing hand wheel can be locked at any point with one hand.

Size: 400×350×350mm

(Fast thermostatic freezing and paraffin slicing in one machine)
